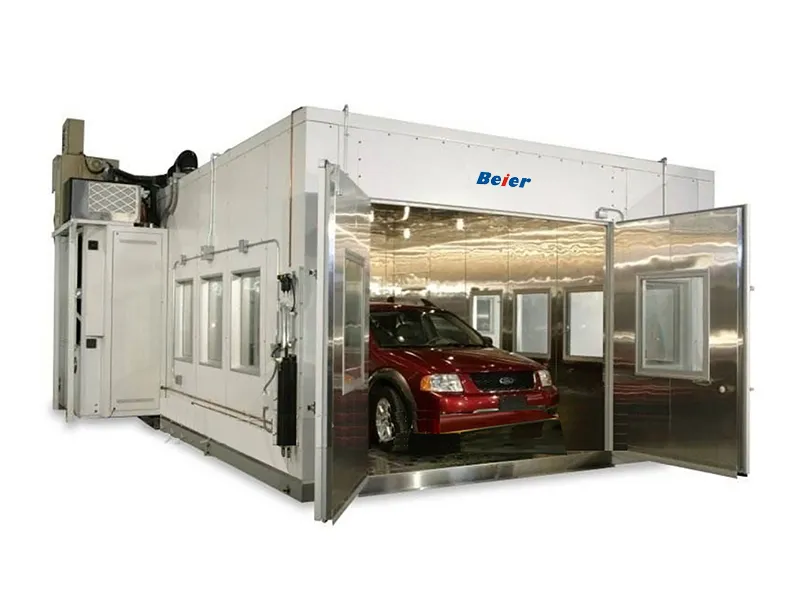

Walk-In & Drive-In Environmental Test Chamber

Available in many sizes and configurations for your individual requirements

Walk-In & Drive-In Environmental Test Chamber
Request a Quote
PDF

Walk-In & Drive-In Environmental Test Chamber

Available in many sizes and configurations for your individual requirements

Walk-in & drive-in environmental test chamber is a high-precision testing equipment designed for many industries, specially for the automotive industry, aerospace, electronics and appliances.

  • It is ideal for testing large products, batches of products or for full vehicle testing with walk-in environmental chamber solutions.
  • Multiple environmental conditions may be selected for combined test conditions such as temperature, humidity, vibration and solar simulation for performance levels required for your testing.
  • Many options are available to customize your testing including access ports, heavy floor loading, various wall thickness, quiet packages, doors, windows, user and product safety options, LN2 boost and more.

These test chambers are suitable for the testing of M1, M2, N1 spark ignition engine vehicles with a total mass not exceeding 3500kg in accordance with the National V, National VI, Euro III and Euro IV emission regulations.

  • Walk-In & Drive-In Environmental Test Chamber
  • Walk-In & Drive-In Environmental Test Chamber
  • Walk-In & Drive-In Environmental Test Chamber
  • Walk-In & Drive-In Environmental Test Chamber
Applications

The test chamber is widely used for automotive research and development, manufacturing, aerospace, electronics, electrical appliances, hardware manufacturing, and other industries.

  • Applications
  • Applications
  • Applications
Specifications
Temperature Range -40℃~+60℃ Optional
Humidity Range 30~80% RH
Absolute Humidity 5.5≤H≤12.2gH2O/kg dry air Optional
Max. Vehicle Weight 2500kg Optional
Max. Engine Power 300kW Optional
Max. Air Intake 720m³/h Optional
Max. Vehicle Exhaust 3000 m³/h Optional
Max. Temperature of Exhaust Pipe Outlet 350℃
Blower Power 100kW, wind speed 160Km/h, air flow 120000m³/h
Simulation of Solar Intensity 120-1200W Optional
Simulation of Wind Speed 5-100km/h Optional
Fresh Air Supply 2000 m³/h Optional
Power Supply AC380V±10%;50 Hz; three-phase four-wire + grounding wire
Features
  • In addition to whole vehicle testing, the test chamber can also test automotive components and assemblies to ensure their stability and reliability.
  • Drive-in vehicle test chamber can conduct accelerated salt spray tests on various parts of the vehicle to identify, analyze, and take protective measures.
  • Reliability tests can be performed on these systems to ensure their stability and safety in various environments.
  • The odor test chamber can provide a suitable environment for odor detection, ensuring indoor air quality and enhancing consumer comfort and satisfaction.

If you're developing new automotive design concepts, we can assist you in simulating airflow, altitude, temperature fluctuations, vibrations, pressure, as well as weathering and corrosion behavior. Whether you're seeking headlamp testing stations or automotive rain chambers/leakage testing systems, or any other testing systems, with our drive-in vehicle test chamber, you can conduct high-precision measurements to validate your components before final production.
