Ozone Test Chamber

Environmental chamber used for aging test of elastomers and rubber products

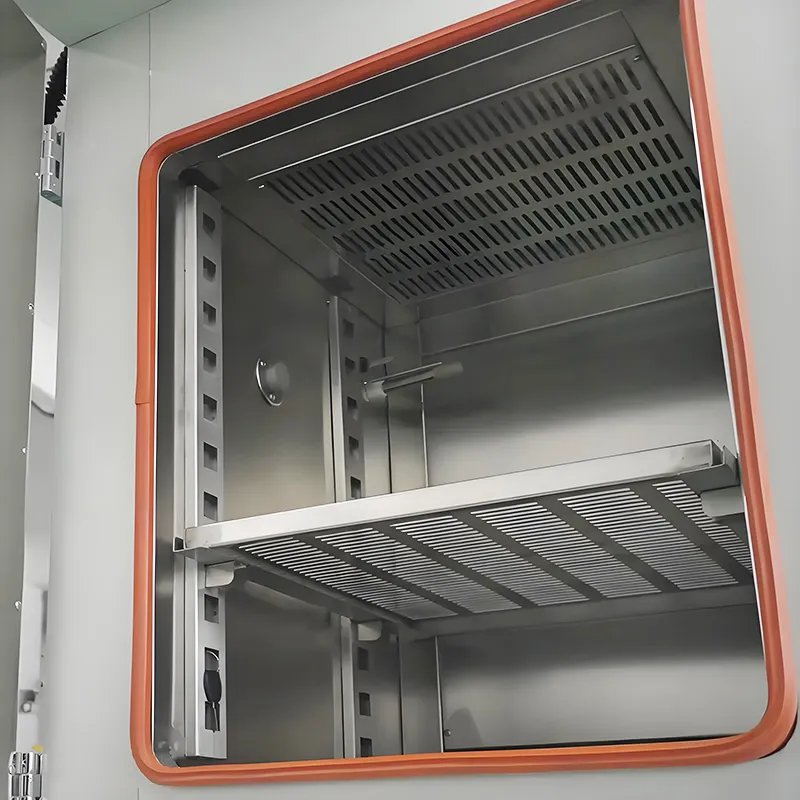

Ozone Test Chamber
  • Ozone Test Chamber
  • Ozone Test Chamber
  • Ozone Test Chamber
  • Ozone Test Chamber
  • Ozone Test Chamber
  • Ozone Test Chamber

    • Ozone Test Chamber

    Environmental chamber used for aging test of elastomers and rubber products

     Highlight
    • Our ozone test chambers are the trusted standard for more than 90% of provincial quality inspection institutes in China. Beier Labs is the exclusive manufacturer in China with such a deep and collaborative partnership with official quality assurance bodies.
    • This ozone test chamber is a patented product of Beier (Invention Patent No. ZL:03150992.4), and it was among the earliest products in China to receive an invention patent.
    • Our ozone concentration measurement accuracy reaches ±4%, significantly exceeding the national standard of ±10%.
    • Beier Labs is the earliest manufacturer in China capable of integrating both dynamic and static tensile specimen racks within a single ozone test chamber. By optimizing the equipment's dimensions and incorporating independent space, we cater to a wider range of customer compatibility requirements.

    Certificate & Standards
    CE certification
    Standards: JISK 6259, ASTM 1149 , ISO 1431, GB/T 7762-2022, GB/T 11206, GB/T 13642, GB/T 2951

    Request a Quote
    PDF

    Ozone test chamber is an environmental chamber used to test the ozone aging resistance of rubber products. It utilizes the internationally accepted non-dispersive ultraviolet standard (dual-speed ultraviolet) to measure the ozone concentration, simulating and intensifying ozone conditions in the atmosphere to study the effects of ozone on materials like rubber. This enables rapid identification and evaluation of the anti-ozone aging properties of rubber materials and the protective efficacy of anti-ozone agents. Alternatively, it necessitates the adoption of effective anti-aging measures to extend the service life of rubber products.

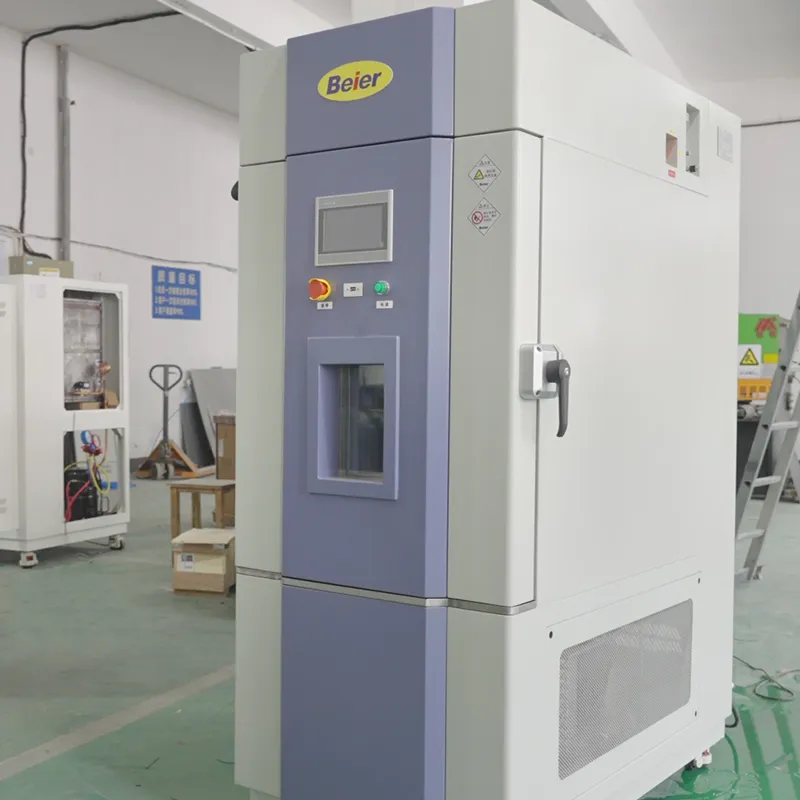

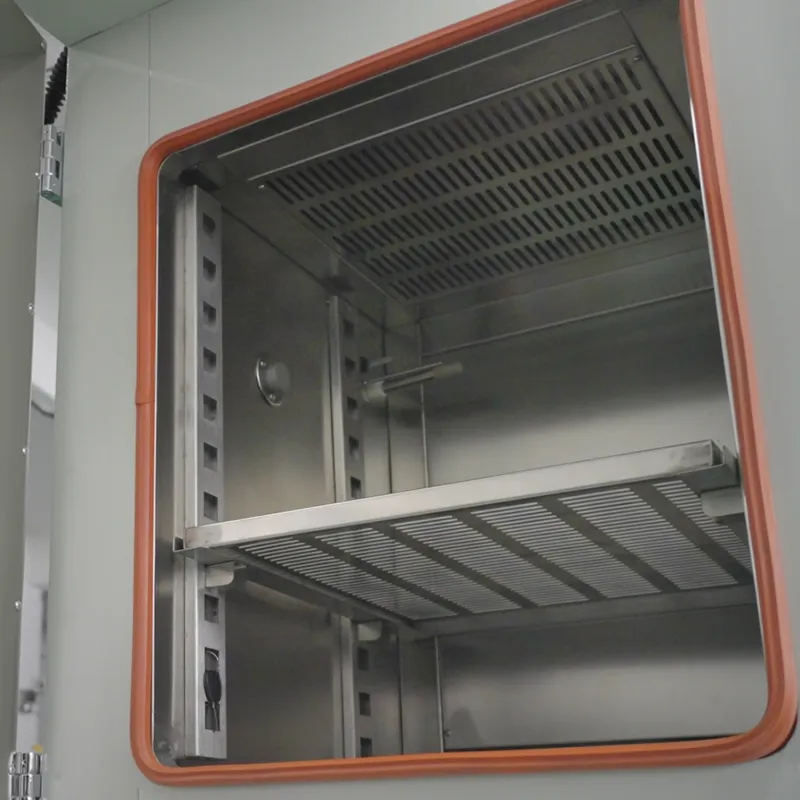

    Product Overview

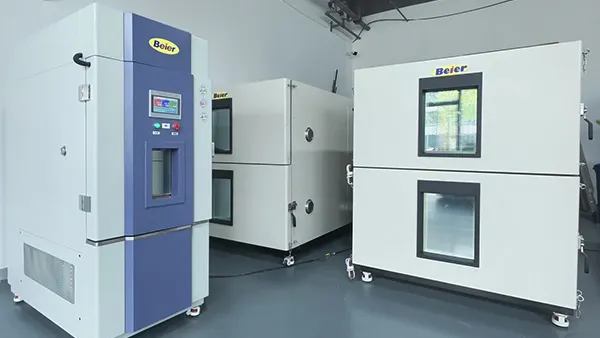

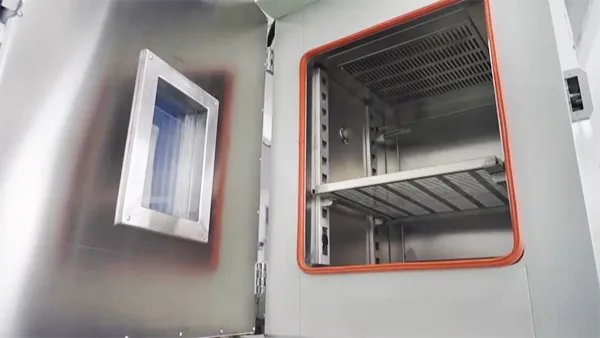

    Product Overview

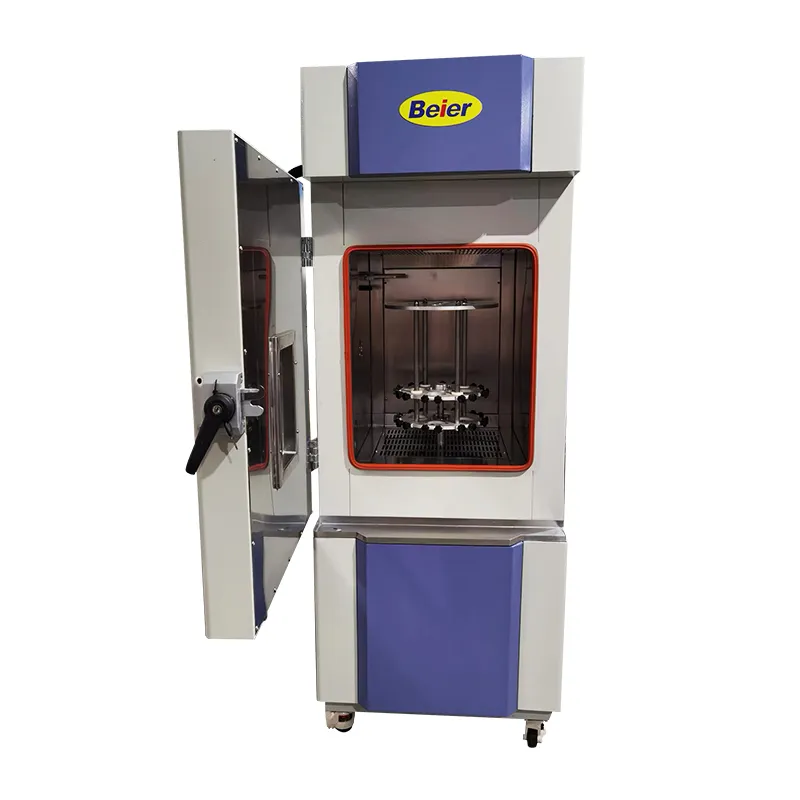

    Static Test Rack Demonstration
    Static Test Rack Demonstration

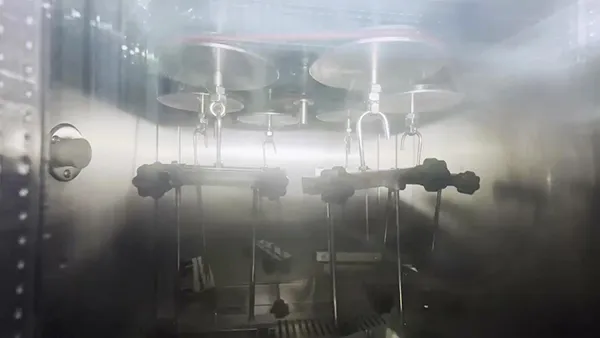

    Leader's Demonstration (Dynamic Tensile Test Rack)
    Leader's Demonstration (Dynamic Tensile Test Rack)

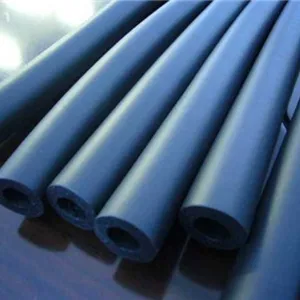

    Rubber Hose Testing
    Rubber Hose Testing
    Applications
    • Applications
      In the automotive manufacturing industry, ozone test chambers are used to test the durability of automotive components.
    • Applications
      In the construction materials manufacturing industry, ozone test chambers are used to evaluate the weather resistance and durability of building materials (such as sealants, insulation materials).
    • Applications
      Components and enclosures in the electronics industry often need to withstand various environmental conditions, including ozone, ultraviolet light, and high temperatures.
    • Applications
      In the plastic & rubber manufacturing industry, ozone test chambers are used to simulate the aging process of materials in outdoor environments to assess their performance and lifespan.
    • Applications
      In the packaging materials manufacturing industry, packaging materials require a certain level of weather resistance and stability to protect the products within.
    • Applications
      Ozone test chambers are crucial testing equipment in research institutions, providing researchers with reliable means to study material aging mechanisms, performance changes, and lifespan prediction.
    Functions
    • Ozone test chamber is able to perform static endurance test, exposing the samples to sealed air with a certain concentration of ozone and constant temperature.
    • Ozone test chamber is also able to perform testing under static strain or continuous dynamic strain, or after interrupting dynamic tensile and static strain. To test, expose the products in a closed, sunlight-free and temperature-controlled environmental test chamber. And then observe the cracks on the test products’ surface, or the changes of other properties to evaluate the ozone resistance of vulcanized rubber.
    Features
    • Ozone test chamber is equipped with an internal circulation air duct. The ozone concentration, temperature, and humidity are controlled via computer. These ensure uniform airflow parallel to the surface of the specimens, in compliance with international standards.
    • Computerized ozone concentration, temperature, and humidity controller offers high integration, LED display, high temperature and humidity resolution, and good reliability.
    Specifications
    Ozone Concentration 0~500pphm, 0~1000pphm, 100~250ppm Optional
    Ozone Measurement Accuracy ±5%
    Working Chamber Dimensions (D x W x H) 150L, 500 × 500 × 600 mm (Customizable)
    Overall Equipment Dimensions (L x W x H) 1220 × 700 × 1880 mm (including casters, customizable)
    Temperature Range RT+10℃~80℃, -10℃~80℃ Optional
    Temperature Deviation ±2℃
    Relative Humidity ≤65% RH
    Sample Holder Rotating Speed 2r/min Optional
    Sample Holder Stretching Frequency 0.5Hz Optional
    Airflow Velocity 12~16mm/s
    Airflow Rate 20~70L/min
    Ambient Temperature +10℃~25℃
    Details

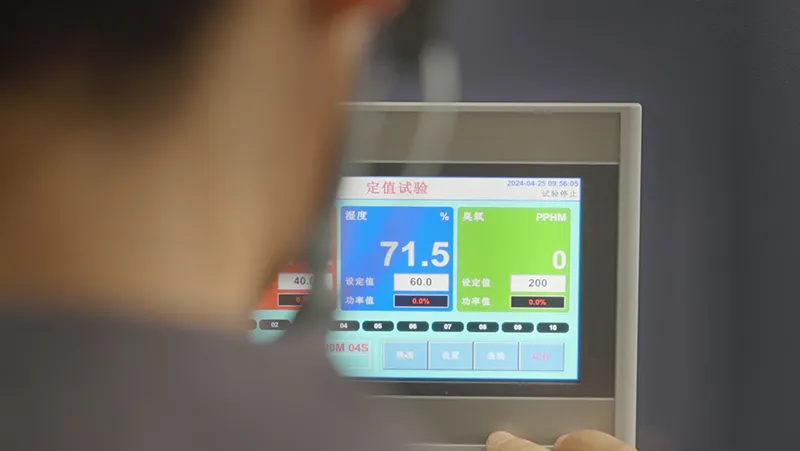

    Control System

    Control System

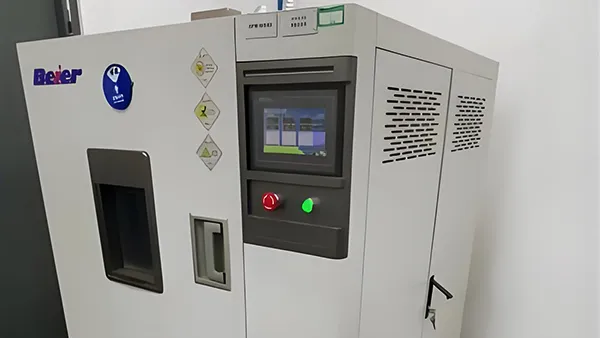

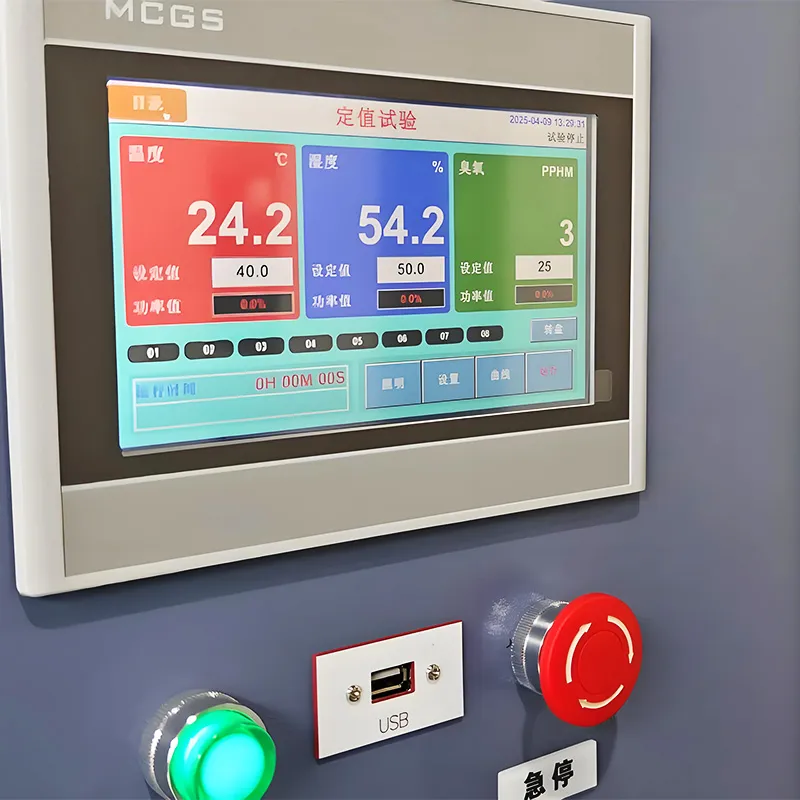

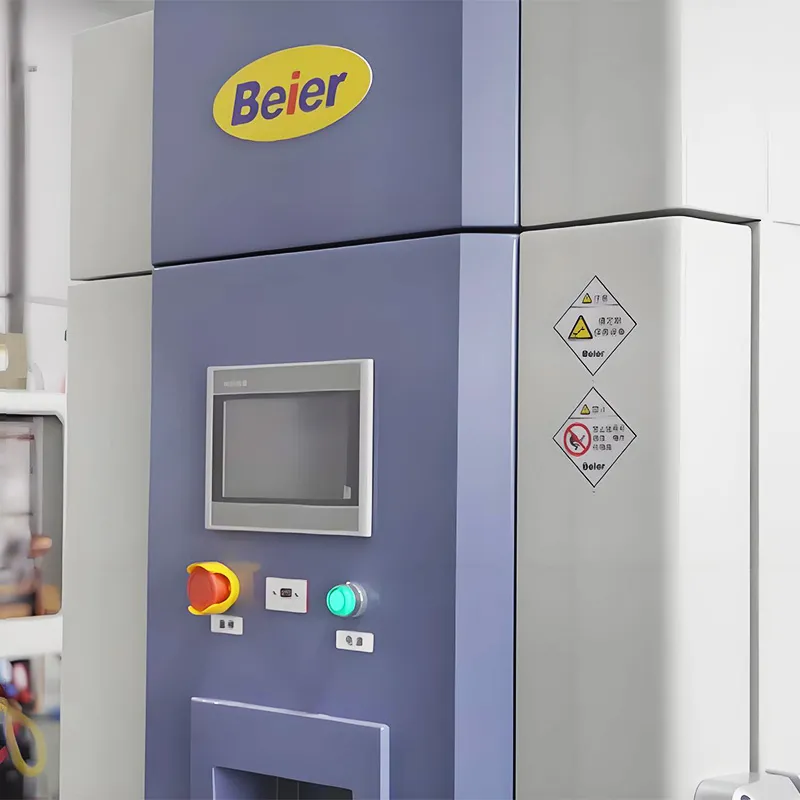

    The touchscreen intelligent controller is located on the front right side of the test chamber, featuring an embedded industrial control integrated computer (7-inch color touchscreen) with a USB interface for printing test data from a PC. It employs the Beer-Lamber law measurement application software. The integrated ozone concentration, temperature, and humidity controller (with touch-button settings) offer high integration, reliability, LED display, and temperature resolution of 0.1°C, humidity resolution of 0.1% RH, and ozone concentration of 1 ppm. PID setpoint control ensures easy operation.

    Humidification Method

    Humidification Method
    Utilizes electric steam humidification controlled by PID-adjusted non-contact solid-state relays.

    Water Supply Method

    Water Supply Method

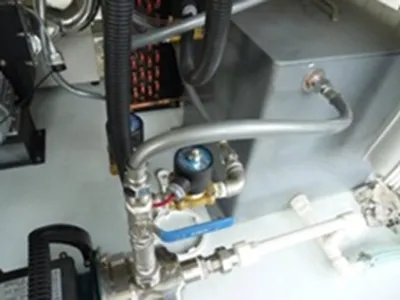

    Stainless steel humidifier, water level gauge, water tank.

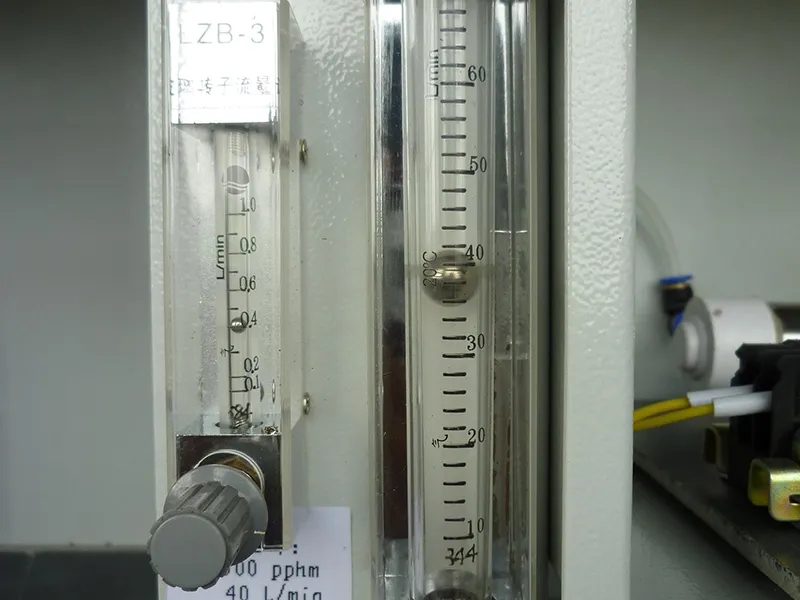

    Gas Flowmeter

    Gas Flowmeter

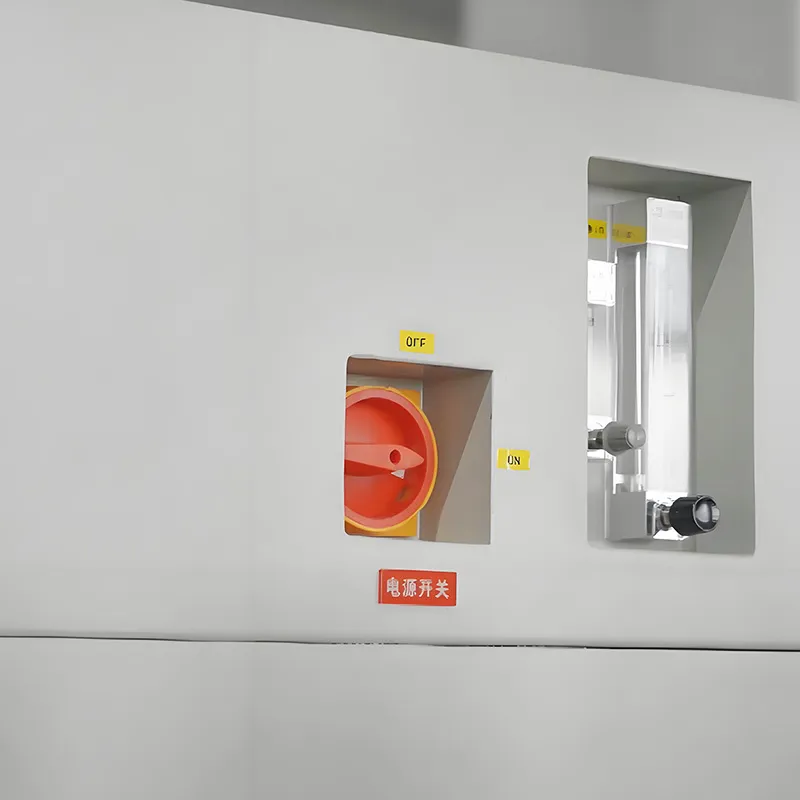

    Gas flowmeter ensures precise control of gas flow at various levels.

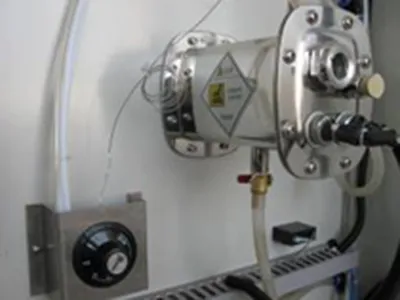

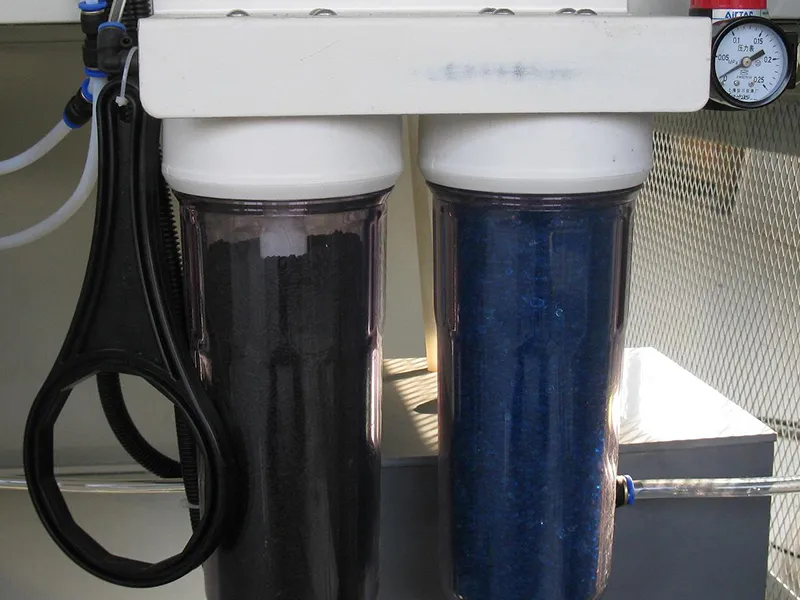

    Gas Purification Device

    Gas Purification Device
    Gas purifier includes an activated carbon absorption, and silica gel drying units.
    Multiple Test Racks (Optional)

    Satisfies both static tensile testing requirements, ensuring specimen movement adheres to the cycloidal trajectory principle, and dynamic tensile testing. Operation is convenient and reliable.

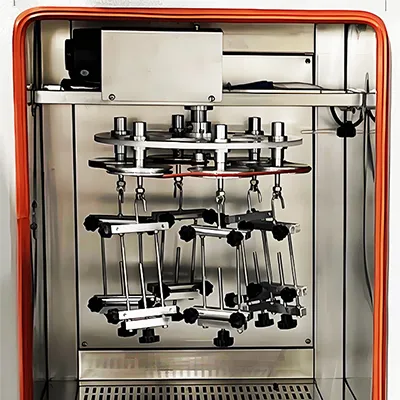

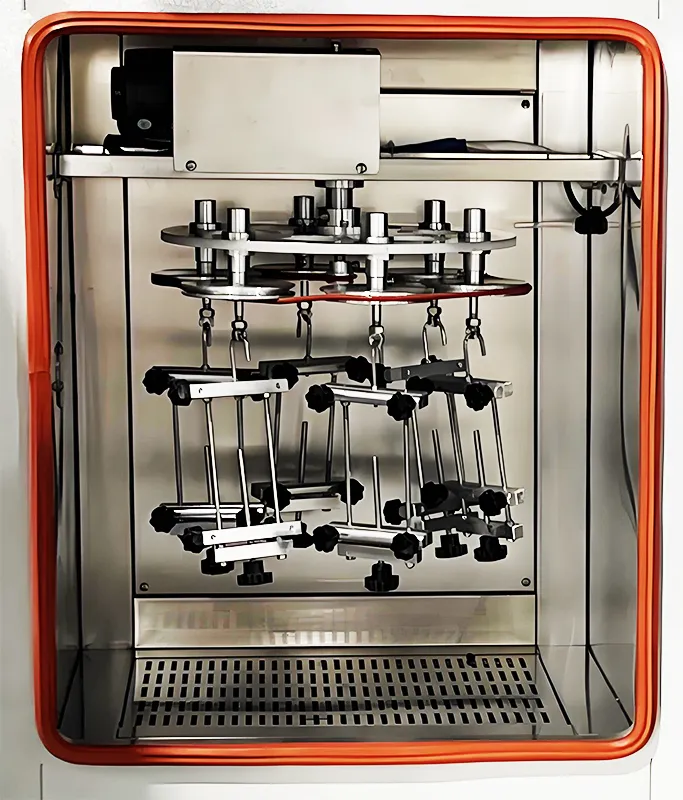

    Dynamic Tensile Specimen RackDynamic Tensile Specimen Rack
    Static Tensile Specimen RackStatic Tensile Specimen Rack

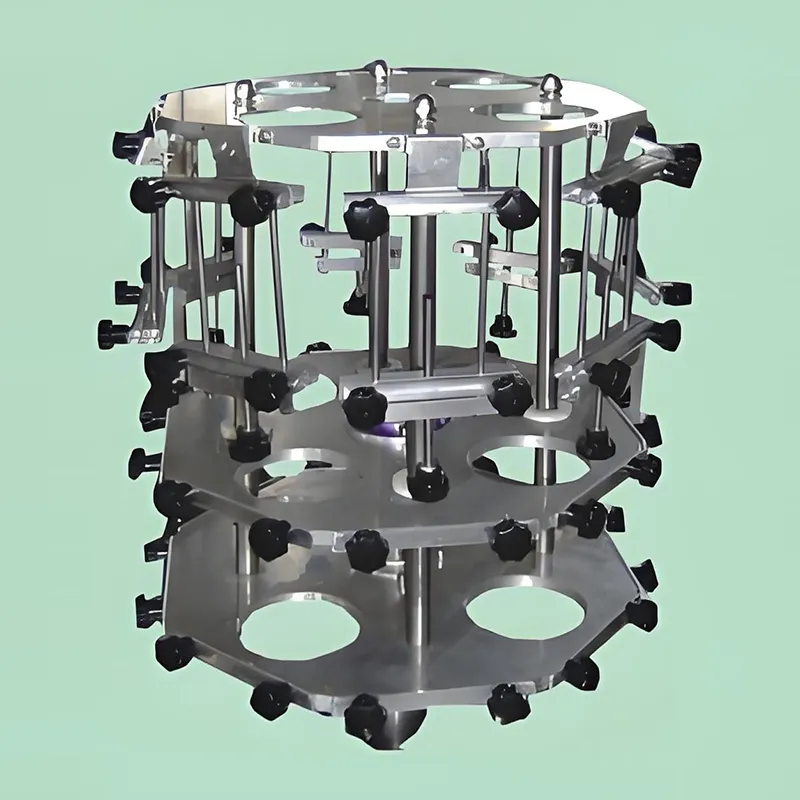

    Standard Static Specimen RackStandard Static Specimen Rack

    Commonly used methods include electrochemical sensor analysis and ultraviolet (UV) absorption. Our ozone test chambers are equipped with imported ozone analyzers that utilize the advanced UV absorption method to detect ozone concentration. This method offers high accuracy and reliable data, enabling continuous online detection to ensure precise test results!

    Our patented product (Invention Patent No. ZL:03150992.4), with a working chamber size of 150L, operates on a 220V power supply.

    It is equipment designed to test the ozone resistance of materials. Ozone in the air accelerates the aging of materials like rubber and plastics. The ozone aging test chamber simulates an ozone environment to accelerate the evaluation process, helping to understand material durability and ensuring product stability and reliability during long-term use.

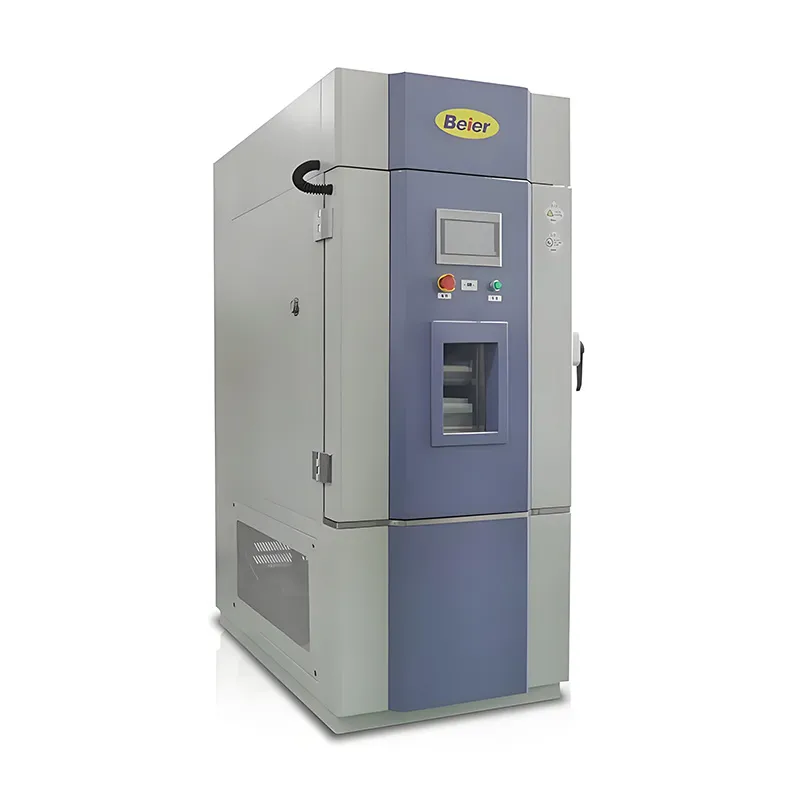

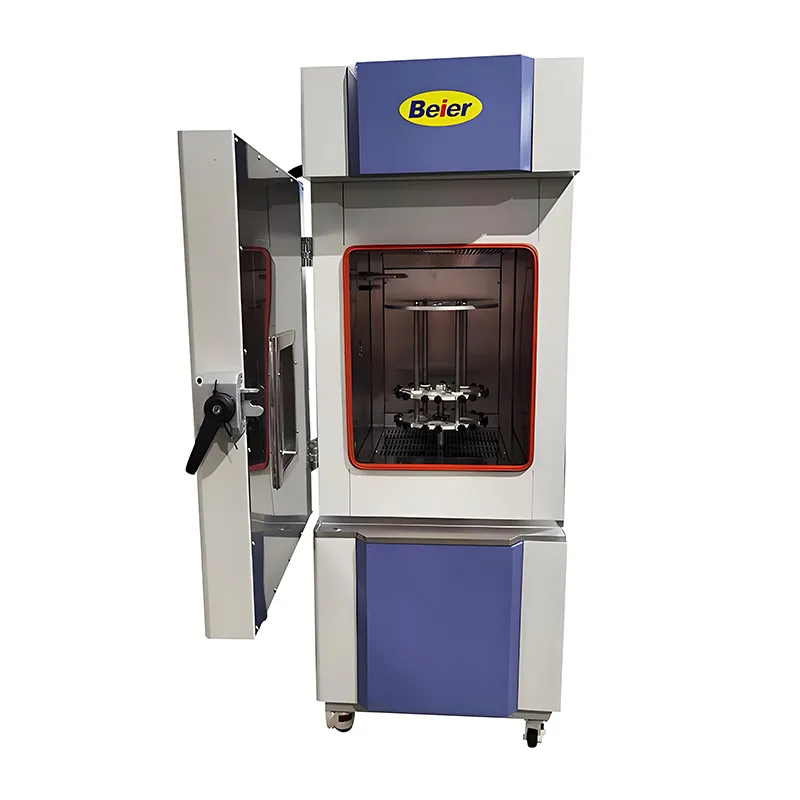

    Our standard model, BR-QL150, features a working chamber size of 150L, with dimensions of 500×500×600 mm (D×W×H). Other chamber dimensions can be customized according to customer requirements!

    Beier Labs is the only manufacturer in China capable of integrating both dynamic and static tensile specimen racks into a single ozone aging test chamber! We achieve this by increasing the equipment size and incorporating independent space, thereby meeting customers' compatibility needs.

    Requirements for ozone test chambers vary significantly across different industries. Below are the main distinctions in ozone chamber needs for the textile industry (e.g., Luolai), the rubber industry, and the electronics industry (e.g., Gree):

    • Textile Industry: Typically requires low ozone concentration, high humidity, a narrow temperature range, and specimen racks suitable for flat samples. Ozone aging tests for textiles usually need lower ozone concentrations (e.g., 10 ppm ~ 50 ppm) but demand more precise humidity control, often requiring relative humidity between 60% and 80%. Humidity significantly impacts the aging speed and manner of textiles, with high humidity accelerating hydrolysis and oxidation of fibers.
    • Rubber Industry: Requires high ozone concentration, low humidity, a wide temperature range, and specimen racks suitable for tensile or hanging samples. Ozone resistance tests for rubber materials typically demand higher ozone concentrations (e.g., 50 ppm ~ 1000 ppm) because rubber's ozone resistance is relatively stronger than textiles, necessitating higher concentrations to accelerate the aging process. Rubber samples are often strip-shaped or block-shaped, requiring specimen racks designed for stretching or hanging to simulate stress conditions during actual use.
    • Electronics Industry: Requires moderate ozone concentration, moderate humidity, a narrow temperature range, and specimen racks suitable for fixed and powered testing. Ozone resistance test concentrations for electronic components are usually between 20 ppm and 100 ppm. Outer casing materials of electronic components (e.g., plastics, rubber) need to be tested at lower concentrations to evaluate their durability in long-term, low-concentration ozone environments. Humidity requirements for electronic component testing are generally stricter, typically between 40% and 60%, to simulate humidity conditions in actual use environments. High humidity might lead to a decrease in the insulation performance of electronic components. Electronic component samples are typically small parts or complete devices, requiring specimen racks designed for fixed and powered testing to ensure the normal operation of components during the test.
