Corrosive Gas Test Chamber

Environmental test chambers simulate and accelerate the corrosion process of metal materials in a specific corrosive environment

Request a Quote

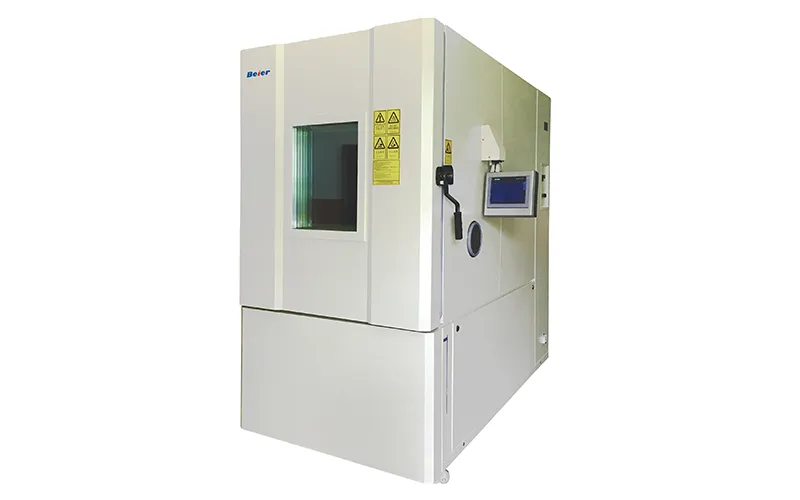

Corrosive Gas Test Chamber

Environmental test chambers simulate and accelerate the corrosion process of metal materials in a specific corrosive environment

Beier’s corrosive gas test chamber is an equipment that used to simulate and accelerate the corrosion behavior of metal materials in a specific environment. It simulates a corrosion environment similar to that in the real world by using specific corrosive gases such ashydrogen sulfide, chlorine, sulfur dioxide, etc. Parameters such as temperature, humidity and pressure can be controlled to simulate different corrosion conditions so that the test results are more in line with the actual situation. This equipment is widely used in aerospace, automotive Industry, electronics and electrical appliances, chemical industry, metallurgy industry and others.

For example, in the oil, gas and chemical industries, hydrogen sulfide is a common corrosive gas that has a serious corrosive effect on metal materials and equipment, so the application of hydrogen sulfide corrosion test chambers in these industries is of great significance.

Standards
Corrosive gas test chamber follows standards: GB/T2423.3, GB/T2423.19, GB/T2423.20, GB/T2423.51.

• Executive Components
  AC contactors and relays from French Schneider.
• Hazardous Gas Monitoring Instrument
  Equipped with sensors and instruments for gases such as H2S and SO2, enabling monitoring and control of hazardous gases, and interconnected with the main control system for regulation.
• Exhaust Gas Absorption Treatment Device
  Includes corrosion-resistant circulating water pumps and hollow diffusion balls to ensure the absorption system's long-term normal operation.
• Special Gas Supply Pipeline, imported stainless steel components, valves, and special gas safety chambers. The metal pipelines are welded using integral welding processes to prevent leaks during intermediate processes.
• High-quality corrosion-resistant spray water pumps and spray pipelines are used.
• Electrical Control System
  Equipped with a 10-inch touchscreen controller with communication interface, providing real-time display of the operation status of various lights inside the control cabin. It can also display and record various calibration parameters, with recorded data capable of being stored for over one year and can be saved externally via USB drive, and generate database formatted data.
